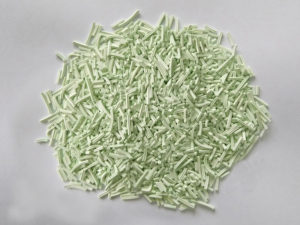

Hydrotreating series protection agent
h@hydrogenationcatalyst.com
The hydrogenation catalyst protection agent developed by our company is mainly used for the hydrotreating process of heavier raw materials.
Product features: By intercepting the particulate matter in the raw material and effectively removing the metal in the raw material, the residual charcoal and other impurities hit the characteristics of reducing the bed lamination drop and protecting the main catalyst.
| Item | apperance | Pore volume | BET | Radial crushing strength | Metel | ||
| colour | shape | size | ml/g | m2/g | N/pcs | ||
| LS-1 | Light yellow | Clover | 3±0.5 | 0.6 | 180 | 12 | Mo-Ni |
| LS-10 | white | Seven hole column | Φ16±1 | 70 | |||
| LS10A | Light yellow | Rasching ring | Φ6±0.5 | 0.55 | 120 | 10 | Mo-Ni |
| LS10B | white | Rasching ring | Φ3.5±0.5 | 0.55 | 120 | 10 | Mo-Ni |
| LS10D | Light yellow | Rasching ring | Φ8±0.5 | 0.68 | 80 | 10 | |
| LS10E | Light yellow | Rasching ring | Φ10±1 | 0.5 | 70 | 12 | Mo-Ni |
| LS20A | Light yellow | Rasching ring | Φ6±0.5 | 0.5 | 90 | 10 | Mo-Ni |
| LS20B | Light yellow | Rasching ring | Φ3±0.5 | 0.5 | 90 | 10 | Mo-Ni |
| LS2R | Light yellow | Rasching ring | Φ3±0.5 | 0.6 | 100 | 10 | Mo-Ni |
| LS10A5B | Light yellow | ellipsoid | Φ5±0.5 | 0.5 | 100 | 20 | Mo-Ni |
| LS10A3.5B | Light yellow | ellipsoid | Φ3.5±0.5 | 0.75 | 100 | 20 | Mo-Ni |
| LS10E8B | Light yellow | ellipsoid | Φ8±1 | 0.5 | 70 | 20 | Mo-Ni |
