Denti-Ball Shaped Hydrofining Catalyst for Upgrading Light Distillates
h@hydrogenationcatalyst.com
-Product Desciption
Be applied in hydrogenation removal of organic sulphides and nitrides in hydrocarbon production streams like gasoline or kerosene.
-Product Characteristics
Excellent activity for sulphides, nitrides removal
High crushing strength and low pressure drop in catalyst beds
Long service life
-Chemical Composition
NiO, MoO3, CoO, WO3, alumina
Handling
Load and handle carefully in transportation, do not destroy the package, avoiding rain.
-Storage in shady and cool, low-temperature and dry location. Period of quality assurance is 2 years in normal temperature.

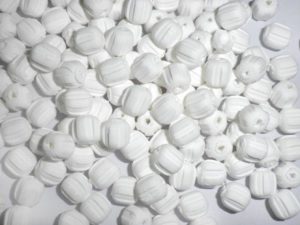

| Appearance | Denti-ball shaped |
| Diameter, mm | 2.5-3.0 |
| Bulk density, g/cm3 | 0.70-0.90 |
| Surface area, m 2 /g | ≥220 |
| Pore volume, ml/g | ≥0.42 |
| Crushing strength, N/pellet | ≥30 |
-Typical Process Conditions and Product Properties
| Process | Hydrogen Partial Pressure, Mpa | Initial Reaction Temp, º C | LHSV, /h |
| Atmospheric overhead of Saudi Arabia | 1.6 | 280 | 1.5 |
| Intermediate | sulphides or nitrogen < 0.5ppm | ||
-Typical Operating Conditions
| Process | Reforming feedstock | Kerosene | coker gasoline |
| Inlet Temperature, º C | 260-300 | 240-310 | 190-260 |
| Hydrogen partial pressure, MPa | 1.5-3.0 | 0.8-3.0 | 2.5-4.0 |
| LHSV, /h | 6.0-10.0 | 2.0-5.0 | 1.0-2.0 |
| Hydrogen Oil Ratio by Volume | 80-200 | 200-400 | 300-500 |
The parameters above can be adjusted according to specific situations. The catalyst is a multi-purpose catalyst that can be applied to a variety of feedstocks.
