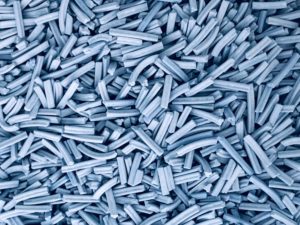

Hydrocracking Catalyst factory
h@hydrogenationcatalyst.com
-Model No.: LSZHC-02
-Usage: Positive Catalyst
-Classification: Heterogeneous Catalysts
-Carrier: Amorphous silica-alumina
-Export Markets: Global
-Application
Single-staged hydrocracking process of VGO/mixture of VGO and CGO for producing light fuels, such as jet fuels, diesel, etc.
-Characteristics
High hydrocracking activity for VGO/mixture of VGO and CGO.
Operated with high space velocity
High crushing strength and low packing density
Easy to operate and regenerate
-Active Metals
W-Ni
-Packing
Flexible Freight Bags.
-Handle carefully in transportation, do not damage the package, avoid rain.
Store in shady, cool, low-temperature, and dry location. Quality guarantee period is 2 years in normal temperature.
| Shape | Cylinder |
| Diameter, mm | 1.5-1.8 |
| Length, mm | 3-8 |
| Bulk density, kg/L | 0.95-1.05 |
| BET surface area, m 2 /g | ≥210 |
| Crushing strength, N/cm | ≥12 |
| Service life | ≥24~36 months for the first operation period, the catalyst is regenerable and can be used a second time |
Operating Conditions
| Item | Parameter |
| Pressure, MPa | 10.0-18.0 |
| LHSV, /h | 0.5-1.5 |
| Temperature, ºC | 340-440 |
