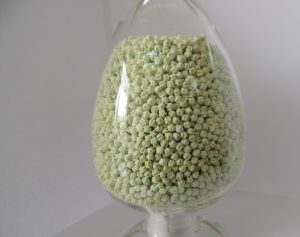

Prehydrotreating for Hydrocracking Feedstocks

Prehydrotreating for Hydrocracking Feedstocks

h@hydrogenationcatalyst.com



Model No.: LSPHT-01

Usage: Positive Catalyst
Classification: Heterogeneous Catalysts

Export Markets: Global

Application
Hydrotreating process used for VGO or the mixture of VGO and other regular feedstock of hydrocracking reactor.

Characteristics
High catalytic activity for HDS, HDN, HDO, Olefin saturation, and HDA.
Operated with high space velocity
High crushing strength and low packing density
Easy to operate and regenerate

Active Metals
Mo-Ni

Packing
Flexible Freight Bags.

Handle carefully in transportation, do not damage the package, avoid rain.
Store in shady, cool, and dry location. Quality guarantee period is 2 years in normal temperature.

Shape PHT-01
Diameter, mm 2.3-4.0
Pore Volume, ml/g ≥0.3
BET surface area, m 2 /g >140
Bulk density, kg/L 0.80-1.00
Crushing strength, N/cm ≥18
Service life ≥24 months for the first operation period, regenerable,
total service life not less than 72 months


Operating Conditions

Item Parameter
Pressure, MPa 8.0
LHSV, /h 0.73
Temperature, 376
H2/Oil (volume) at inlet 750:1

catalyst
